Neo4j¶

Neo4j is a graph database, and is useful when the relationships between items in our database is of interest.

Graph concepts¶

elements¶

graph
vertex
edge
path

graph properties¶

directed or undirected
weighted or unweighted
cyclic or acyclic
single or multiple edges
connected or disconnected

vertex properties¶

in-degree
out-degree
centrality

edge properties¶

direction
weight
multiplicity

Graph representations¶

Vertex and edge collections
Adjacency list
Adjacency matrix
Sparse matrix

In [38]:

vs = ['a', 'b', 'c', 'd']
es = [('a','c', 1), ('b','c', 2), ('a','d', 3), ('c', 'd', 4)]

g1 = nx.DiGraph()
g1.add_nodes_from(vs)
g1.add_weighted_edges_from(es)

pos = nx.spring_layout(g1)
labels = nx.get_edge_attributes(g1,'weight')
nx.draw(g1, pos=pos, alpha=0.5)
nx.draw_networkx_edge_labels(g1, pos=pos, edge_labels=labels)
nx.draw_networkx_labels(g1, pos=pos)
pass

In [57]:

import sys

In [59]:

nx.write_adjlist(g1, sys.stdout)

#/usr/local/lib/python3.6/site-packages/ipykernel_launcher.py -f /Users/cliburn/Library/Jupyter/runtime/kernel-c9a57054-1320-4816-9dbe-da7c9fc8eeb8.json
# GMT Fri Sep  7 18:57:23 2018
#
a c d
b c
c d
d

In [73]:

print(nx.adj_matrix(g1))

  (0, 2)        1
  (0, 3)        3
  (1, 2)        2
  (2, 3)        4

In [72]:

nx.adj_matrix(g1).todense()

Out[72]:

matrix([[0, 0, 1, 3],
        [0, 0, 2, 0],
        [0, 0, 0, 4],
        [0, 0, 0, 0]], dtype=int64)

Standard format for graph exchange is GraphML¶

In [60]:

nx.write_gml(g1, sys.stdout)

graph [
  directed 1
  node [
    id 0
    label "a"
  ]
  node [
    id 1
    label "b"
  ]
  node [
    id 2
    label "c"
  ]
  node [
    id 3
    label "d"
  ]
  edge [
    source 0
    target 2
    weight 1
  ]
  edge [
    source 0
    target 3
    weight 3
  ]
  edge [
    source 1
    target 2
    weight 2
  ]
  edge [
    source 2
    target 3
    weight 4
  ]
]

Some examples¶

In [1]:

import networkx as nx

In [3]:

n = 50
k = 6
p =0.3
g = nx.watts_strogatz_graph(n, k, p)

In [21]:

%matplotlib inline

Visual representations of the same graph may look very different¶

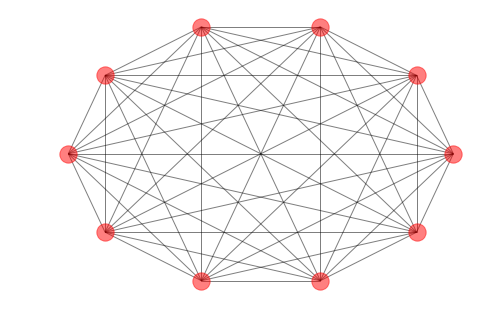

Complete graph¶

In [25]:

nx.draw_circular(nx.complete_graph(10), alpha=0.5)

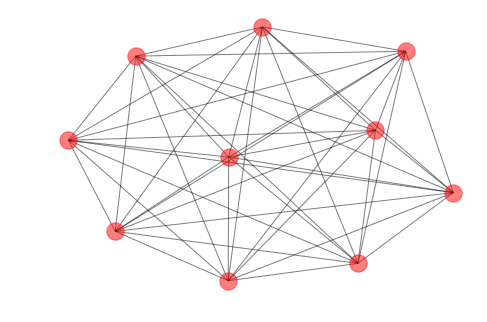

In [26]:

nx.draw(nx.complete_graph(10), alpha=0.5)

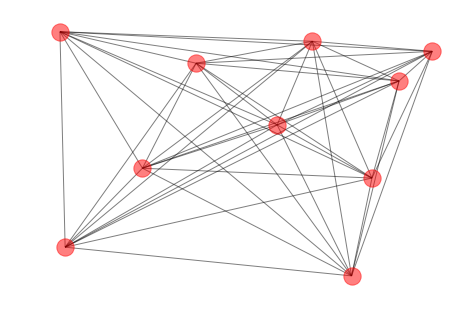

In [27]:

nx.draw_random(nx.complete_graph(10), alpha=0.5)

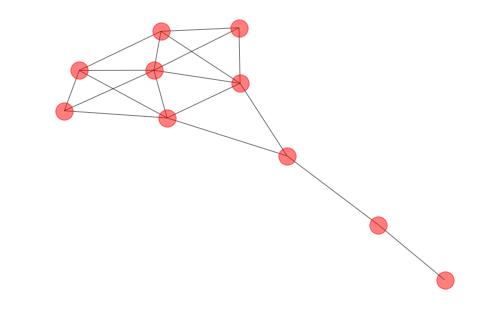

Undirected graph¶

In [14]:

nx.draw(nx.krackhardt_kite_graph(), alpha=0.5)

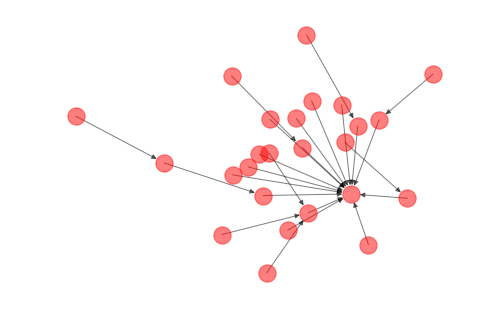

Directed graph¶

In [29]:

nx.draw(nx.gn_graph(25), alpha=0.5)

Cypher¶

In [2]:

%load_ext cypher

In [3]:

%config CypherMagic.uri='http://neo4j:bios-823@localhost:7474/db/data/'

Create a database¶

This is a small subset of the full database. If you want to play with the full database, see instructions

Note: There are other ways to create a graph database by importing data

In [4]:

%%cypher

CREATE (TheMatrix:Movie {title:'The Matrix', released:1999, tagline:'Welcome to the Real World'})
CREATE (Keanu:Person {name:'Keanu Reeves', born:1964})
CREATE (Carrie:Person {name:'Carrie-Anne Moss', born:1967})
CREATE (Laurence:Person {name:'Laurence Fishburne', born:1961})
CREATE (Hugo:Person {name:'Hugo Weaving', born:1960})
CREATE (LillyW:Person {name:'Lilly Wachowski', born:1967})
CREATE (LanaW:Person {name:'Lana Wachowski', born:1965})
CREATE (JoelS:Person {name:'Joel Silver', born:1952})
CREATE
  (Keanu)-[:ACTED_IN {roles:['Neo']}]->(TheMatrix),
  (Carrie)-[:ACTED_IN {roles:['Trinity']}]->(TheMatrix),
  (Laurence)-[:ACTED_IN {roles:['Morpheus']}]->(TheMatrix),
  (Hugo)-[:ACTED_IN {roles:['Agent Smith']}]->(TheMatrix),
  (LillyW)-[:DIRECTED]->(TheMatrix),
  (LanaW)-[:DIRECTED]->(TheMatrix),
  (JoelS)-[:PRODUCED]->(TheMatrix)

CREATE (Emil:Person {name:"Emil Eifrem", born:1978})
CREATE (Emil)-[:ACTED_IN {roles:["Emil"]}]->(TheMatrix)

CREATE (TheMatrixReloaded:Movie {title:'The Matrix Reloaded', released:2003, tagline:'Free your mind'})
CREATE
  (Keanu)-[:ACTED_IN {roles:['Neo']}]->(TheMatrixReloaded),
  (Carrie)-[:ACTED_IN {roles:['Trinity']}]->(TheMatrixReloaded),
  (Laurence)-[:ACTED_IN {roles:['Morpheus']}]->(TheMatrixReloaded),
  (Hugo)-[:ACTED_IN {roles:['Agent Smith']}]->(TheMatrixReloaded),
  (LillyW)-[:DIRECTED]->(TheMatrixReloaded),
  (LanaW)-[:DIRECTED]->(TheMatrixReloaded),
  (JoelS)-[:PRODUCED]->(TheMatrixReloaded)

CREATE (TheMatrixRevolutions:Movie {title:'The Matrix Revolutions', released:2003, tagline:'Everything that has a beginning has an end'})
CREATE
  (Keanu)-[:ACTED_IN {roles:['Neo']}]->(TheMatrixRevolutions),
  (Carrie)-[:ACTED_IN {roles:['Trinity']}]->(TheMatrixRevolutions),
  (Laurence)-[:ACTED_IN {roles:['Morpheus']}]->(TheMatrixRevolutions),
  (Hugo)-[:ACTED_IN {roles:['Agent Smith']}]->(TheMatrixRevolutions),
  (LillyW)-[:DIRECTED]->(TheMatrixRevolutions),
  (LanaW)-[:DIRECTED]->(TheMatrixRevolutions),
  (JoelS)-[:PRODUCED]->(TheMatrixRevolutions)

CREATE (TheDevilsAdvocate:Movie {title:"The Devil's Advocate", released:1997, tagline:'Evil has its winning ways'})
CREATE (Charlize:Person {name:'Charlize Theron', born:1975})
CREATE (Al:Person {name:'Al Pacino', born:1940})
CREATE (Taylor:Person {name:'Taylor Hackford', born:1944})
CREATE
  (Keanu)-[:ACTED_IN {roles:['Kevin Lomax']}]->(TheDevilsAdvocate),
  (Charlize)-[:ACTED_IN {roles:['Mary Ann Lomax']}]->(TheDevilsAdvocate),
  (Al)-[:ACTED_IN {roles:['John Milton']}]->(TheDevilsAdvocate),
  (Taylor)-[:DIRECTED]->(TheDevilsAdvocate)

CREATE (AFewGoodMen:Movie {title:"A Few Good Men", released:1992, tagline:"In the heart of the nation's capital, in a courthouse of the U.S. government, one man will stop at nothing to keep his honor, and one will stop at nothing to find the truth."})
CREATE (TomC:Person {name:'Tom Cruise', born:1962})
CREATE (JackN:Person {name:'Jack Nicholson', born:1937})
CREATE (DemiM:Person {name:'Demi Moore', born:1962})
CREATE (KevinB:Person {name:'Kevin Bacon', born:1958})
CREATE (KieferS:Person {name:'Kiefer Sutherland', born:1966})
CREATE (NoahW:Person {name:'Noah Wyle', born:1971})
CREATE (CubaG:Person {name:'Cuba Gooding Jr.', born:1968})
CREATE (KevinP:Person {name:'Kevin Pollak', born:1957})
CREATE (JTW:Person {name:'J.T. Walsh', born:1943})
CREATE (JamesM:Person {name:'James Marshall', born:1967})
CREATE (ChristopherG:Person {name:'Christopher Guest', born:1948})
CREATE (RobR:Person {name:'Rob Reiner', born:1947})
CREATE (AaronS:Person {name:'Aaron Sorkin', born:1961})
CREATE
  (TomC)-[:ACTED_IN {roles:['Lt. Daniel Kaffee']}]->(AFewGoodMen),
  (JackN)-[:ACTED_IN {roles:['Col. Nathan R. Jessup']}]->(AFewGoodMen),
  (DemiM)-[:ACTED_IN {roles:['Lt. Cdr. JoAnne Galloway']}]->(AFewGoodMen),
  (KevinB)-[:ACTED_IN {roles:['Capt. Jack Ross']}]->(AFewGoodMen),
  (KieferS)-[:ACTED_IN {roles:['Lt. Jonathan Kendrick']}]->(AFewGoodMen),
  (NoahW)-[:ACTED_IN {roles:['Cpl. Jeffrey Barnes']}]->(AFewGoodMen),
  (CubaG)-[:ACTED_IN {roles:['Cpl. Carl Hammaker']}]->(AFewGoodMen),
  (KevinP)-[:ACTED_IN {roles:['Lt. Sam Weinberg']}]->(AFewGoodMen),
  (JTW)-[:ACTED_IN {roles:['Lt. Col. Matthew Andrew Markinson']}]->(AFewGoodMen),
  (JamesM)-[:ACTED_IN {roles:['Pfc. Louden Downey']}]->(AFewGoodMen),
  (ChristopherG)-[:ACTED_IN {roles:['Dr. Stone']}]->(AFewGoodMen),
  (AaronS)-[:ACTED_IN {roles:['Man in Bar']}]->(AFewGoodMen),
  (RobR)-[:DIRECTED]->(AFewGoodMen),
  (AaronS)-[:WROTE]->(AFewGoodMen)

CREATE (TopGun:Movie {title:"Top Gun", released:1986, tagline:'I feel the need, the need for speed.'})
CREATE (KellyM:Person {name:'Kelly McGillis', born:1957})
CREATE (ValK:Person {name:'Val Kilmer', born:1959})
CREATE (AnthonyE:Person {name:'Anthony Edwards', born:1962})
CREATE (TomS:Person {name:'Tom Skerritt', born:1933})
CREATE (MegR:Person {name:'Meg Ryan', born:1961})
CREATE (TonyS:Person {name:'Tony Scott', born:1944})
CREATE (JimC:Person {name:'Jim Cash', born:1941})
CREATE
  (TomC)-[:ACTED_IN {roles:['Maverick']}]->(TopGun),
  (KellyM)-[:ACTED_IN {roles:['Charlie']}]->(TopGun),
  (ValK)-[:ACTED_IN {roles:['Iceman']}]->(TopGun),
  (AnthonyE)-[:ACTED_IN {roles:['Goose']}]->(TopGun),
  (TomS)-[:ACTED_IN {roles:['Viper']}]->(TopGun),
  (MegR)-[:ACTED_IN {roles:['Carole']}]->(TopGun),
  (TonyS)-[:DIRECTED]->(TopGun),
  (JimC)-[:WROTE]->(TopGun)

CREATE (JerryMaguire:Movie {title:'Jerry Maguire', released:2000, tagline:'The rest of his life begins now.'})
CREATE (ReneeZ:Person {name:'Renee Zellweger', born:1969})
CREATE (KellyP:Person {name:'Kelly Preston', born:1962})
CREATE (JerryO:Person {name:"Jerry O'Connell", born:1974})
CREATE (JayM:Person {name:'Jay Mohr', born:1970})
CREATE (BonnieH:Person {name:'Bonnie Hunt', born:1961})
CREATE (ReginaK:Person {name:'Regina King', born:1971})
CREATE (JonathanL:Person {name:'Jonathan Lipnicki', born:1996})
CREATE (CameronC:Person {name:'Cameron Crowe', born:1957})
CREATE
  (TomC)-[:ACTED_IN {roles:['Jerry Maguire']}]->(JerryMaguire),
  (CubaG)-[:ACTED_IN {roles:['Rod Tidwell']}]->(JerryMaguire),
  (ReneeZ)-[:ACTED_IN {roles:['Dorothy Boyd']}]->(JerryMaguire),
  (KellyP)-[:ACTED_IN {roles:['Avery Bishop']}]->(JerryMaguire),
  (JerryO)-[:ACTED_IN {roles:['Frank Cushman']}]->(JerryMaguire),
  (JayM)-[:ACTED_IN {roles:['Bob Sugar']}]->(JerryMaguire),
  (BonnieH)-[:ACTED_IN {roles:['Laurel Boyd']}]->(JerryMaguire),
  (ReginaK)-[:ACTED_IN {roles:['Marcee Tidwell']}]->(JerryMaguire),
  (JonathanL)-[:ACTED_IN {roles:['Ray Boyd']}]->(JerryMaguire),
  (CameronC)-[:DIRECTED]->(JerryMaguire),
  (CameronC)-[:PRODUCED]->(JerryMaguire),
  (CameronC)-[:WROTE]->(JerryMaguire)

CREATE (StandByMe:Movie {title:"Stand By Me", released:1986, tagline:"For some, it's the last real taste of innocence, and the first real taste of life. But for everyone, it's the time that memories are made of."})
CREATE (RiverP:Person {name:'River Phoenix', born:1970})
CREATE (CoreyF:Person {name:'Corey Feldman', born:1971})
CREATE (WilW:Person {name:'Wil Wheaton', born:1972})
CREATE (JohnC:Person {name:'John Cusack', born:1966})
CREATE (MarshallB:Person {name:'Marshall Bell', born:1942})
CREATE
  (WilW)-[:ACTED_IN {roles:['Gordie Lachance']}]->(StandByMe),
  (RiverP)-[:ACTED_IN {roles:['Chris Chambers']}]->(StandByMe),
  (JerryO)-[:ACTED_IN {roles:['Vern Tessio']}]->(StandByMe),
  (CoreyF)-[:ACTED_IN {roles:['Teddy Duchamp']}]->(StandByMe),
  (JohnC)-[:ACTED_IN {roles:['Denny Lachance']}]->(StandByMe),
  (KieferS)-[:ACTED_IN {roles:['Ace Merrill']}]->(StandByMe),
  (MarshallB)-[:ACTED_IN {roles:['Mr. Lachance']}]->(StandByMe),
  (RobR)-[:DIRECTED]->(StandByMe)

CREATE (AsGoodAsItGets:Movie {title:'As Good as It Gets', released:1997, tagline:'A comedy from the heart that goes for the throat.'})
CREATE (HelenH:Person {name:'Helen Hunt', born:1963})
CREATE (GregK:Person {name:'Greg Kinnear', born:1963})
CREATE (JamesB:Person {name:'James L. Brooks', born:1940})
CREATE
  (JackN)-[:ACTED_IN {roles:['Melvin Udall']}]->(AsGoodAsItGets),
  (HelenH)-[:ACTED_IN {roles:['Carol Connelly']}]->(AsGoodAsItGets),
  (GregK)-[:ACTED_IN {roles:['Simon Bishop']}]->(AsGoodAsItGets),
  (CubaG)-[:ACTED_IN {roles:['Frank Sachs']}]->(AsGoodAsItGets),
  (JamesB)-[:DIRECTED]->(AsGoodAsItGets)

CREATE (WhatDreamsMayCome:Movie {title:'What Dreams May Come', released:1998, tagline:'After life there is more. The end is just the beginning.'})
CREATE (AnnabellaS:Person {name:'Annabella Sciorra', born:1960})
CREATE (MaxS:Person {name:'Max von Sydow', born:1929})
CREATE (WernerH:Person {name:'Werner Herzog', born:1942})
CREATE (Robin:Person {name:'Robin Williams', born:1951})
CREATE (VincentW:Person {name:'Vincent Ward', born:1956})
CREATE
  (Robin)-[:ACTED_IN {roles:['Chris Nielsen']}]->(WhatDreamsMayCome),
  (CubaG)-[:ACTED_IN {roles:['Albert Lewis']}]->(WhatDreamsMayCome),
  (AnnabellaS)-[:ACTED_IN {roles:['Annie Collins-Nielsen']}]->(WhatDreamsMayCome),
  (MaxS)-[:ACTED_IN {roles:['The Tracker']}]->(WhatDreamsMayCome),
  (WernerH)-[:ACTED_IN {roles:['The Face']}]->(WhatDreamsMayCome),
  (VincentW)-[:DIRECTED]->(WhatDreamsMayCome)

CREATE (SnowFallingonCedars:Movie {title:'Snow Falling on Cedars', released:1999, tagline:'First loves last. Forever.'})
CREATE (EthanH:Person {name:'Ethan Hawke', born:1970})
CREATE (RickY:Person {name:'Rick Yune', born:1971})
CREATE (JamesC:Person {name:'James Cromwell', born:1940})
CREATE (ScottH:Person {name:'Scott Hicks', born:1953})
CREATE
  (EthanH)-[:ACTED_IN {roles:['Ishmael Chambers']}]->(SnowFallingonCedars),
  (RickY)-[:ACTED_IN {roles:['Kazuo Miyamoto']}]->(SnowFallingonCedars),
  (MaxS)-[:ACTED_IN {roles:['Nels Gudmundsson']}]->(SnowFallingonCedars),
  (JamesC)-[:ACTED_IN {roles:['Judge Fielding']}]->(SnowFallingonCedars),
  (ScottH)-[:DIRECTED]->(SnowFallingonCedars)

CREATE (YouveGotMail:Movie {title:"You've Got Mail", released:1998, tagline:'At odds in life... in love on-line.'})
CREATE (ParkerP:Person {name:'Parker Posey', born:1968})
CREATE (DaveC:Person {name:'Dave Chappelle', born:1973})
CREATE (SteveZ:Person {name:'Steve Zahn', born:1967})
CREATE (TomH:Person {name:'Tom Hanks', born:1956})
CREATE (NoraE:Person {name:'Nora Ephron', born:1941})
CREATE
  (TomH)-[:ACTED_IN {roles:['Joe Fox']}]->(YouveGotMail),
  (MegR)-[:ACTED_IN {roles:['Kathleen Kelly']}]->(YouveGotMail),
  (GregK)-[:ACTED_IN {roles:['Frank Navasky']}]->(YouveGotMail),
  (ParkerP)-[:ACTED_IN {roles:['Patricia Eden']}]->(YouveGotMail),
  (DaveC)-[:ACTED_IN {roles:['Kevin Jackson']}]->(YouveGotMail),
  (SteveZ)-[:ACTED_IN {roles:['George Pappas']}]->(YouveGotMail),
  (NoraE)-[:DIRECTED]->(YouveGotMail)

CREATE (SleeplessInSeattle:Movie {title:'Sleepless in Seattle', released:1993, tagline:'What if someone you never met, someone you never saw, someone you never knew was the only someone for you?'})
CREATE (RitaW:Person {name:'Rita Wilson', born:1956})
CREATE (BillPull:Person {name:'Bill Pullman', born:1953})
CREATE (VictorG:Person {name:'Victor Garber', born:1949})
CREATE (RosieO:Person {name:"Rosie O'Donnell", born:1962})
CREATE
  (TomH)-[:ACTED_IN {roles:['Sam Baldwin']}]->(SleeplessInSeattle),
  (MegR)-[:ACTED_IN {roles:['Annie Reed']}]->(SleeplessInSeattle),
  (RitaW)-[:ACTED_IN {roles:['Suzy']}]->(SleeplessInSeattle),
  (BillPull)-[:ACTED_IN {roles:['Walter']}]->(SleeplessInSeattle),
  (VictorG)-[:ACTED_IN {roles:['Greg']}]->(SleeplessInSeattle),
  (RosieO)-[:ACTED_IN {roles:['Becky']}]->(SleeplessInSeattle),
  (NoraE)-[:DIRECTED]->(SleeplessInSeattle)

CREATE (JoeVersustheVolcano:Movie {title:'Joe Versus the Volcano', released:1990, tagline:'A story of love, lava and burning desire.'})
CREATE (JohnS:Person {name:'John Patrick Stanley', born:1950})
CREATE (Nathan:Person {name:'Nathan Lane', born:1956})
CREATE
  (TomH)-[:ACTED_IN {roles:['Joe Banks']}]->(JoeVersustheVolcano),
  (MegR)-[:ACTED_IN {roles:['DeDe', 'Angelica Graynamore', 'Patricia Graynamore']}]->(JoeVersustheVolcano),
  (Nathan)-[:ACTED_IN {roles:['Baw']}]->(JoeVersustheVolcano),
  (JohnS)-[:DIRECTED]->(JoeVersustheVolcano)

CREATE (WhenHarryMetSally:Movie {title:'When Harry Met Sally', released:1998, tagline:'At odds in life... in love on-line.'})
CREATE (BillyC:Person {name:'Billy Crystal', born:1948})
CREATE (CarrieF:Person {name:'Carrie Fisher', born:1956})
CREATE (BrunoK:Person {name:'Bruno Kirby', born:1949})
CREATE
  (BillyC)-[:ACTED_IN {roles:['Harry Burns']}]->(WhenHarryMetSally),
  (MegR)-[:ACTED_IN {roles:['Sally Albright']}]->(WhenHarryMetSally),
  (CarrieF)-[:ACTED_IN {roles:['Marie']}]->(WhenHarryMetSally),
  (BrunoK)-[:ACTED_IN {roles:['Jess']}]->(WhenHarryMetSally),
  (RobR)-[:DIRECTED]->(WhenHarryMetSally),
  (RobR)-[:PRODUCED]->(WhenHarryMetSally),
  (NoraE)-[:PRODUCED]->(WhenHarryMetSally),
  (NoraE)-[:WROTE]->(WhenHarryMetSally)

CREATE (ThatThingYouDo:Movie {title:'That Thing You Do', released:1996, tagline:'In every life there comes a time when that thing you dream becomes that thing you do'})
CREATE (LivT:Person {name:'Liv Tyler', born:1977})
CREATE
  (TomH)-[:ACTED_IN {roles:['Mr. White']}]->(ThatThingYouDo),
  (LivT)-[:ACTED_IN {roles:['Faye Dolan']}]->(ThatThingYouDo),
  (Charlize)-[:ACTED_IN {roles:['Tina']}]->(ThatThingYouDo),
  (TomH)-[:DIRECTED]->(ThatThingYouDo)

CREATE (TheReplacements:Movie {title:'The Replacements', released:2000, tagline:'Pain heals, Chicks dig scars... Glory lasts forever'})
CREATE (Brooke:Person {name:'Brooke Langton', born:1970})
CREATE (Gene:Person {name:'Gene Hackman', born:1930})
CREATE (Orlando:Person {name:'Orlando Jones', born:1968})
CREATE (Howard:Person {name:'Howard Deutch', born:1950})
CREATE
  (Keanu)-[:ACTED_IN {roles:['Shane Falco']}]->(TheReplacements),
  (Brooke)-[:ACTED_IN {roles:['Annabelle Farrell']}]->(TheReplacements),
  (Gene)-[:ACTED_IN {roles:['Jimmy McGinty']}]->(TheReplacements),
  (Orlando)-[:ACTED_IN {roles:['Clifford Franklin']}]->(TheReplacements),
  (Howard)-[:DIRECTED]->(TheReplacements)

CREATE (RescueDawn:Movie {title:'RescueDawn', released:2006, tagline:"Based on the extraordinary true story of one man's fight for freedom"})
CREATE (ChristianB:Person {name:'Christian Bale', born:1974})
CREATE (ZachG:Person {name:'Zach Grenier', born:1954})
CREATE
  (MarshallB)-[:ACTED_IN {roles:['Admiral']}]->(RescueDawn),
  (ChristianB)-[:ACTED_IN {roles:['Dieter Dengler']}]->(RescueDawn),
  (ZachG)-[:ACTED_IN {roles:['Squad Leader']}]->(RescueDawn),
  (SteveZ)-[:ACTED_IN {roles:['Duane']}]->(RescueDawn),
  (WernerH)-[:DIRECTED]->(RescueDawn)

CREATE (TheBirdcage:Movie {title:'The Birdcage', released:1996, tagline:'Come as you are'})
CREATE (MikeN:Person {name:'Mike Nichols', born:1931})
CREATE
  (Robin)-[:ACTED_IN {roles:['Armand Goldman']}]->(TheBirdcage),
  (Nathan)-[:ACTED_IN {roles:['Albert Goldman']}]->(TheBirdcage),
  (Gene)-[:ACTED_IN {roles:['Sen. Kevin Keeley']}]->(TheBirdcage),
  (MikeN)-[:DIRECTED]->(TheBirdcage)

CREATE (Unforgiven:Movie {title:'Unforgiven', released:1992, tagline:"It's a hell of a thing, killing a man"})
CREATE (RichardH:Person {name:'Richard Harris', born:1930})
CREATE (ClintE:Person {name:'Clint Eastwood', born:1930})
CREATE
  (RichardH)-[:ACTED_IN {roles:['English Bob']}]->(Unforgiven),
  (ClintE)-[:ACTED_IN {roles:['Bill Munny']}]->(Unforgiven),
  (Gene)-[:ACTED_IN {roles:['Little Bill Daggett']}]->(Unforgiven),
  (ClintE)-[:DIRECTED]->(Unforgiven)

CREATE (JohnnyMnemonic:Movie {title:'Johnny Mnemonic', released:1995, tagline:'The hottest data on earth. In the coolest head in town'})
CREATE (Takeshi:Person {name:'Takeshi Kitano', born:1947})
CREATE (Dina:Person {name:'Dina Meyer', born:1968})
CREATE (IceT:Person {name:'Ice-T', born:1958})
CREATE (RobertL:Person {name:'Robert Longo', born:1953})
CREATE
  (Keanu)-[:ACTED_IN {roles:['Johnny Mnemonic']}]->(JohnnyMnemonic),
  (Takeshi)-[:ACTED_IN {roles:['Takahashi']}]->(JohnnyMnemonic),
  (Dina)-[:ACTED_IN {roles:['Jane']}]->(JohnnyMnemonic),
  (IceT)-[:ACTED_IN {roles:['J-Bone']}]->(JohnnyMnemonic),
  (RobertL)-[:DIRECTED]->(JohnnyMnemonic)

CREATE (CloudAtlas:Movie {title:'Cloud Atlas', released:2012, tagline:'Everything is connected'})
CREATE (HalleB:Person {name:'Halle Berry', born:1966})
CREATE (JimB:Person {name:'Jim Broadbent', born:1949})
CREATE (TomT:Person {name:'Tom Tykwer', born:1965})
CREATE (DavidMitchell:Person {name:'David Mitchell', born:1969})
CREATE (StefanArndt:Person {name:'Stefan Arndt', born:1961})
CREATE
  (TomH)-[:ACTED_IN {roles:['Zachry', 'Dr. Henry Goose', 'Isaac Sachs', 'Dermot Hoggins']}]->(CloudAtlas),
  (Hugo)-[:ACTED_IN {roles:['Bill Smoke', 'Haskell Moore', 'Tadeusz Kesselring', 'Nurse Noakes', 'Boardman Mephi', 'Old Georgie']}]->(CloudAtlas),
  (HalleB)-[:ACTED_IN {roles:['Luisa Rey', 'Jocasta Ayrs', 'Ovid', 'Meronym']}]->(CloudAtlas),
  (JimB)-[:ACTED_IN {roles:['Vyvyan Ayrs', 'Captain Molyneux', 'Timothy Cavendish']}]->(CloudAtlas),
  (TomT)-[:DIRECTED]->(CloudAtlas),
  (LillyW)-[:DIRECTED]->(CloudAtlas),
  (LanaW)-[:DIRECTED]->(CloudAtlas),
  (DavidMitchell)-[:WROTE]->(CloudAtlas),
  (StefanArndt)-[:PRODUCED]->(CloudAtlas)

CREATE (TheDaVinciCode:Movie {title:'The Da Vinci Code', released:2006, tagline:'Break The Codes'})
CREATE (IanM:Person {name:'Ian McKellen', born:1939})
CREATE (AudreyT:Person {name:'Audrey Tautou', born:1976})
CREATE (PaulB:Person {name:'Paul Bettany', born:1971})
CREATE (RonH:Person {name:'Ron Howard', born:1954})
CREATE
  (TomH)-[:ACTED_IN {roles:['Dr. Robert Langdon']}]->(TheDaVinciCode),
  (IanM)-[:ACTED_IN {roles:['Sir Leight Teabing']}]->(TheDaVinciCode),
  (AudreyT)-[:ACTED_IN {roles:['Sophie Neveu']}]->(TheDaVinciCode),
  (PaulB)-[:ACTED_IN {roles:['Silas']}]->(TheDaVinciCode),
  (RonH)-[:DIRECTED]->(TheDaVinciCode)

CREATE (VforVendetta:Movie {title:'V for Vendetta', released:2006, tagline:'Freedom! Forever!'})
CREATE (NatalieP:Person {name:'Natalie Portman', born:1981})
CREATE (StephenR:Person {name:'Stephen Rea', born:1946})
CREATE (JohnH:Person {name:'John Hurt', born:1940})
CREATE (BenM:Person {name: 'Ben Miles', born:1967})
CREATE
  (Hugo)-[:ACTED_IN {roles:['V']}]->(VforVendetta),
  (NatalieP)-[:ACTED_IN {roles:['Evey Hammond']}]->(VforVendetta),
  (StephenR)-[:ACTED_IN {roles:['Eric Finch']}]->(VforVendetta),
  (JohnH)-[:ACTED_IN {roles:['High Chancellor Adam Sutler']}]->(VforVendetta),
  (BenM)-[:ACTED_IN {roles:['Dascomb']}]->(VforVendetta),
  (JamesM)-[:DIRECTED]->(VforVendetta),
  (LillyW)-[:PRODUCED]->(VforVendetta),
  (LanaW)-[:PRODUCED]->(VforVendetta),
  (JoelS)-[:PRODUCED]->(VforVendetta),
  (LillyW)-[:WROTE]->(VforVendetta),
  (LanaW)-[:WROTE]->(VforVendetta)

CREATE (SpeedRacer:Movie {title:'Speed Racer', released:2008, tagline:'Speed has no limits'})
CREATE (EmileH:Person {name:'Emile Hirsch', born:1985})
CREATE (JohnG:Person {name:'John Goodman', born:1960})
CREATE (SusanS:Person {name:'Susan Sarandon', born:1946})
CREATE (MatthewF:Person {name:'Matthew Fox', born:1966})
CREATE (ChristinaR:Person {name:'Christina Ricci', born:1980})
CREATE (Rain:Person {name:'Rain', born:1982})
CREATE
  (EmileH)-[:ACTED_IN {roles:['Speed Racer']}]->(SpeedRacer),
  (JohnG)-[:ACTED_IN {roles:['Pops']}]->(SpeedRacer),
  (SusanS)-[:ACTED_IN {roles:['Mom']}]->(SpeedRacer),
  (MatthewF)-[:ACTED_IN {roles:['Racer X']}]->(SpeedRacer),
  (ChristinaR)-[:ACTED_IN {roles:['Trixie']}]->(SpeedRacer),
  (Rain)-[:ACTED_IN {roles:['Taejo Togokahn']}]->(SpeedRacer),
  (BenM)-[:ACTED_IN {roles:['Cass Jones']}]->(SpeedRacer),
  (LillyW)-[:DIRECTED]->(SpeedRacer),
  (LanaW)-[:DIRECTED]->(SpeedRacer),
  (LillyW)-[:WROTE]->(SpeedRacer),
  (LanaW)-[:WROTE]->(SpeedRacer),
  (JoelS)-[:PRODUCED]->(SpeedRacer)

CREATE (NinjaAssassin:Movie {title:'Ninja Assassin', released:2009, tagline:'Prepare to enter a secret world of assassins'})
CREATE (NaomieH:Person {name:'Naomie Harris'})
CREATE
  (Rain)-[:ACTED_IN {roles:['Raizo']}]->(NinjaAssassin),
  (NaomieH)-[:ACTED_IN {roles:['Mika Coretti']}]->(NinjaAssassin),
  (RickY)-[:ACTED_IN {roles:['Takeshi']}]->(NinjaAssassin),
  (BenM)-[:ACTED_IN {roles:['Ryan Maslow']}]->(NinjaAssassin),
  (JamesM)-[:DIRECTED]->(NinjaAssassin),
  (LillyW)-[:PRODUCED]->(NinjaAssassin),
  (LanaW)-[:PRODUCED]->(NinjaAssassin),
  (JoelS)-[:PRODUCED]->(NinjaAssassin)

CREATE (TheGreenMile:Movie {title:'The Green Mile', released:1999, tagline:"Walk a mile you'll never forget."})
CREATE (MichaelD:Person {name:'Michael Clarke Duncan', born:1957})
CREATE (DavidM:Person {name:'David Morse', born:1953})
CREATE (SamR:Person {name:'Sam Rockwell', born:1968})
CREATE (GaryS:Person {name:'Gary Sinise', born:1955})
CREATE (PatriciaC:Person {name:'Patricia Clarkson', born:1959})
CREATE (FrankD:Person {name:'Frank Darabont', born:1959})
CREATE
  (TomH)-[:ACTED_IN {roles:['Paul Edgecomb']}]->(TheGreenMile),
  (MichaelD)-[:ACTED_IN {roles:['John Coffey']}]->(TheGreenMile),
  (DavidM)-[:ACTED_IN {roles:['Brutus "Brutal" Howell']}]->(TheGreenMile),
  (BonnieH)-[:ACTED_IN {roles:['Jan Edgecomb']}]->(TheGreenMile),
  (JamesC)-[:ACTED_IN {roles:['Warden Hal Moores']}]->(TheGreenMile),
  (SamR)-[:ACTED_IN {roles:['"Wild Bill" Wharton']}]->(TheGreenMile),
  (GaryS)-[:ACTED_IN {roles:['Burt Hammersmith']}]->(TheGreenMile),
  (PatriciaC)-[:ACTED_IN {roles:['Melinda Moores']}]->(TheGreenMile),
  (FrankD)-[:DIRECTED]->(TheGreenMile)

CREATE (FrostNixon:Movie {title:'Frost/Nixon', released:2008, tagline:'400 million people were waiting for the truth.'})
CREATE (FrankL:Person {name:'Frank Langella', born:1938})
CREATE (MichaelS:Person {name:'Michael Sheen', born:1969})
CREATE (OliverP:Person {name:'Oliver Platt', born:1960})
CREATE
  (FrankL)-[:ACTED_IN {roles:['Richard Nixon']}]->(FrostNixon),
  (MichaelS)-[:ACTED_IN {roles:['David Frost']}]->(FrostNixon),
  (KevinB)-[:ACTED_IN {roles:['Jack Brennan']}]->(FrostNixon),
  (OliverP)-[:ACTED_IN {roles:['Bob Zelnick']}]->(FrostNixon),
  (SamR)-[:ACTED_IN {roles:['James Reston, Jr.']}]->(FrostNixon),
  (RonH)-[:DIRECTED]->(FrostNixon)

CREATE (Hoffa:Movie {title:'Hoffa', released:1992, tagline:"He didn't want law. He wanted justice."})
CREATE (DannyD:Person {name:'Danny DeVito', born:1944})
CREATE (JohnR:Person {name:'John C. Reilly', born:1965})
CREATE
  (JackN)-[:ACTED_IN {roles:['Hoffa']}]->(Hoffa),
  (DannyD)-[:ACTED_IN {roles:['Robert "Bobby" Ciaro']}]->(Hoffa),
  (JTW)-[:ACTED_IN {roles:['Frank Fitzsimmons']}]->(Hoffa),
  (JohnR)-[:ACTED_IN {roles:['Peter "Pete" Connelly']}]->(Hoffa),
  (DannyD)-[:DIRECTED]->(Hoffa)

CREATE (Apollo13:Movie {title:'Apollo 13', released:1995, tagline:'Houston, we have a problem.'})
CREATE (EdH:Person {name:'Ed Harris', born:1950})
CREATE (BillPax:Person {name:'Bill Paxton', born:1955})
CREATE
  (TomH)-[:ACTED_IN {roles:['Jim Lovell']}]->(Apollo13),
  (KevinB)-[:ACTED_IN {roles:['Jack Swigert']}]->(Apollo13),
  (EdH)-[:ACTED_IN {roles:['Gene Kranz']}]->(Apollo13),
  (BillPax)-[:ACTED_IN {roles:['Fred Haise']}]->(Apollo13),
  (GaryS)-[:ACTED_IN {roles:['Ken Mattingly']}]->(Apollo13),
  (RonH)-[:DIRECTED]->(Apollo13)

CREATE (Twister:Movie {title:'Twister', released:1996, tagline:"Don't Breathe. Don't Look Back."})
CREATE (PhilipH:Person {name:'Philip Seymour Hoffman', born:1967})
CREATE (JanB:Person {name:'Jan de Bont', born:1943})
CREATE
  (BillPax)-[:ACTED_IN {roles:['Bill Harding']}]->(Twister),
  (HelenH)-[:ACTED_IN {roles:['Dr. Jo Harding']}]->(Twister),
  (ZachG)-[:ACTED_IN {roles:['Eddie']}]->(Twister),
  (PhilipH)-[:ACTED_IN {roles:['Dustin "Dusty" Davis']}]->(Twister),
  (JanB)-[:DIRECTED]->(Twister)

CREATE (CastAway:Movie {title:'Cast Away', released:2000, tagline:'At the edge of the world, his journey begins.'})
CREATE (RobertZ:Person {name:'Robert Zemeckis', born:1951})
CREATE
  (TomH)-[:ACTED_IN {roles:['Chuck Noland']}]->(CastAway),
  (HelenH)-[:ACTED_IN {roles:['Kelly Frears']}]->(CastAway),
  (RobertZ)-[:DIRECTED]->(CastAway)

CREATE (OneFlewOvertheCuckoosNest:Movie {title:"One Flew Over the Cuckoo's Nest", released:1975, tagline:"If he's crazy, what does that make you?"})
CREATE (MilosF:Person {name:'Milos Forman', born:1932})
CREATE
  (JackN)-[:ACTED_IN {roles:['Randle McMurphy']}]->(OneFlewOvertheCuckoosNest),
  (DannyD)-[:ACTED_IN {roles:['Martini']}]->(OneFlewOvertheCuckoosNest),
  (MilosF)-[:DIRECTED]->(OneFlewOvertheCuckoosNest)

CREATE (SomethingsGottaGive:Movie {title:"Something's Gotta Give", released:2003})
CREATE (DianeK:Person {name:'Diane Keaton', born:1946})
CREATE (NancyM:Person {name:'Nancy Meyers', born:1949})
CREATE
  (JackN)-[:ACTED_IN {roles:['Harry Sanborn']}]->(SomethingsGottaGive),
  (DianeK)-[:ACTED_IN {roles:['Erica Barry']}]->(SomethingsGottaGive),
  (Keanu)-[:ACTED_IN {roles:['Julian Mercer']}]->(SomethingsGottaGive),
  (NancyM)-[:DIRECTED]->(SomethingsGottaGive),
  (NancyM)-[:PRODUCED]->(SomethingsGottaGive),
  (NancyM)-[:WROTE]->(SomethingsGottaGive)

CREATE (BicentennialMan:Movie {title:'Bicentennial Man', released:1999, tagline:"One robot's 200 year journey to become an ordinary man."})
CREATE (ChrisC:Person {name:'Chris Columbus', born:1958})
CREATE
  (Robin)-[:ACTED_IN {roles:['Andrew Marin']}]->(BicentennialMan),
  (OliverP)-[:ACTED_IN {roles:['Rupert Burns']}]->(BicentennialMan),
  (ChrisC)-[:DIRECTED]->(BicentennialMan)

CREATE (CharlieWilsonsWar:Movie {title:"Charlie Wilson's War", released:2007, tagline:"A stiff drink. A little mascara. A lot of nerve. Who said they couldn't bring down the Soviet empire."})
CREATE (JuliaR:Person {name:'Julia Roberts', born:1967})
CREATE
  (TomH)-[:ACTED_IN {roles:['Rep. Charlie Wilson']}]->(CharlieWilsonsWar),
  (JuliaR)-[:ACTED_IN {roles:['Joanne Herring']}]->(CharlieWilsonsWar),
  (PhilipH)-[:ACTED_IN {roles:['Gust Avrakotos']}]->(CharlieWilsonsWar),
  (MikeN)-[:DIRECTED]->(CharlieWilsonsWar)

CREATE (ThePolarExpress:Movie {title:'The Polar Express', released:2004, tagline:'This Holiday Season… Believe'})
CREATE
  (TomH)-[:ACTED_IN {roles:['Hero Boy', 'Father', 'Conductor', 'Hobo', 'Scrooge', 'Santa Claus']}]->(ThePolarExpress),
  (RobertZ)-[:DIRECTED]->(ThePolarExpress)

CREATE (ALeagueofTheirOwn:Movie {title:'A League of Their Own', released:1992, tagline:'Once in a lifetime you get a chance to do something different.'})
CREATE (Madonna:Person {name:'Madonna', born:1954})
CREATE (GeenaD:Person {name:'Geena Davis', born:1956})
CREATE (LoriP:Person {name:'Lori Petty', born:1963})
CREATE (PennyM:Person {name:'Penny Marshall', born:1943})
CREATE
  (TomH)-[:ACTED_IN {roles:['Jimmy Dugan']}]->(ALeagueofTheirOwn),
  (GeenaD)-[:ACTED_IN {roles:['Dottie Hinson']}]->(ALeagueofTheirOwn),
  (LoriP)-[:ACTED_IN {roles:['Kit Keller']}]->(ALeagueofTheirOwn),
  (RosieO)-[:ACTED_IN {roles:['Doris Murphy']}]->(ALeagueofTheirOwn),
  (Madonna)-[:ACTED_IN {roles:['"All the Way" Mae Mordabito']}]->(ALeagueofTheirOwn),
  (BillPax)-[:ACTED_IN {roles:['Bob Hinson']}]->(ALeagueofTheirOwn),
  (PennyM)-[:DIRECTED]->(ALeagueofTheirOwn)

CREATE (PaulBlythe:Person {name:'Paul Blythe'})
CREATE (AngelaScope:Person {name:'Angela Scope'})
CREATE (JessicaThompson:Person {name:'Jessica Thompson'})
CREATE (JamesThompson:Person {name:'James Thompson'})

CREATE
  (JamesThompson)-[:FOLLOWS]->(JessicaThompson),
  (AngelaScope)-[:FOLLOWS]->(JessicaThompson),
  (PaulBlythe)-[:FOLLOWS]->(AngelaScope)

CREATE
  (JessicaThompson)-[:REVIEWED {summary:'An amazing journey', rating:95}]->(CloudAtlas),
  (JessicaThompson)-[:REVIEWED {summary:'Silly, but fun', rating:65}]->(TheReplacements),
  (JamesThompson)-[:REVIEWED {summary:'The coolest football movie ever', rating:100}]->(TheReplacements),
  (AngelaScope)-[:REVIEWED {summary:'Pretty funny at times', rating:62}]->(TheReplacements),
  (JessicaThompson)-[:REVIEWED {summary:'Dark, but compelling', rating:85}]->(Unforgiven),
  (JessicaThompson)-[:REVIEWED {summary:"Slapstick redeemed only by the Robin Williams and Gene Hackman's stellar performances", rating:45}]->(TheBirdcage),
  (JessicaThompson)-[:REVIEWED {summary:'A solid romp', rating:68}]->(TheDaVinciCode),
  (JamesThompson)-[:REVIEWED {summary:'Fun, but a little far fetched', rating:65}]->(TheDaVinciCode),
  (JessicaThompson)-[:REVIEWED {summary:'You had me at Jerry', rating:92}]->(JerryMaguire)

;

564 properties set.
253 relationships created.
171 labels added.
171 nodes created.

Out[4]:

Queries¶

Find all actors¶

In [5]:

%%cypher

MATCH (a:Person)
RETURN DISTINCT a.name AS Actor
ORDER BY a.name
LIMIT 5

5 rows affected.

Out[5]:

Actor
Aaron Sorkin
Al Pacino
Angela Scope
Annabella Sciorra
Anthony Edwards

Find all movies¶

In [6]:

%%cypher

MATCH (m:Movie)
RETURN DISTINCT m.title AS Movie
ORDER BY m.title
LIMIT 5

5 rows affected.

Out[6]:

Movie
A Few Good Men
A League of Their Own
Apollo 13
As Good as It Gets
Bicentennial Man

Find movies that Keanu Reeeves acted in¶

In [7]:

%%cypher

MATCH (p:Person) -[:ACTED_IN]-> (m:Movie)
WHERE p.name = 'Keanu Reeves'
RETURN DISTINCT m.title

7 rows affected.

Out[7]:

m.title
Something's Gotta Give
Johnny Mnemonic
The Replacements
The Devil's Advocate
The Matrix Revolutions
The Matrix Reloaded
The Matrix

Find movies that Keanu Reeves and Al Pacino both acted in¶

In [8]:

%%cypher

MATCH (p1:Person) -[:ACTED_IN]-> (m:Movie) <-[:ACTED_IN]- (p2:Person)
WHERE p1.name = 'Keanu Reeves' AND p2.name = 'Al Pacino'
RETURN DISTINCT m.title

1 rows affected.

Out[8]:

m.title
The Devil's Advocate

More efficient to use attributes¶

In [9]:

%%cypher

MATCH (p1:Person {name: 'Keanu Reeves'}) -[:ACTED_IN]-> (m:Movie) <-[:ACTED_IN]- (p2:Person {name: 'Al Pacino'})
RETURN DISTINCT m.title

1 rows affected.

Out[9]:

m.title
The Devil's Advocate

Find people who acted in Johnny Mnemonic¶

In [10]:

%%cypher

MATCH (m:Movie {title: 'Johnny Mnemonic'}) <-[:ACTED_IN]- (p:Person)
RETURN p.name

4 rows affected.

Out[10]:

p.name
Dina Meyer
Ice-T
Keanu Reeves
Takeshi Kitano

Find oldest actor¶

In [11]:

%%cypher

MATCH (p:Person) -[:ACTED_IN]-> (:Movie)
WHERE EXISTS(p.born)
RETURN DISTINCT p.name, p.born
ORDER BY p.born ASC
limit 1

1 rows affected.

Out[11]:

p.name	p.born
Max von Sydow	1929

Find youngest actor¶

In [12]:

%%cypher

MATCH (p:Person) -[:ACTED_IN]-> (:Movie)
WHERE EXISTS(p.born)
RETURN DISTINCT p.name, p.born
ORDER BY p.born DESC
limit 1

1 rows affected.

Out[12]:

p.name	p.born
Jonathan Lipnicki	1996

Find shortest path between oldest and youngest actor¶

In [13]:

%%cypher

MATCH p=shortestPath(
  (:Person {name:"Max von Sydow"})-[*]-(:Person {name:"Jonathan Lipnicki"})
)
RETURN p

1 rows affected.

Out[13]:

p

[{'name': 'Max von Sydow', 'born': 1929}, {'roles': ['The Tracker']}, {'released': 1998, 'tagline': 'After life there is more. The end is just the beginning.', 'title': 'What Dreams May Come'}, {'roles': ['Albert Lewis']}, {'name': 'Cuba Gooding Jr.', 'born': 1968}, {'roles': ['Rod Tidwell']}, {'released': 2000, 'tagline': 'The rest of his life begins now.', 'title': 'Jerry Maguire'}, {'roles': ['Ray Boyd']}, {'name': 'Jonathan Lipnicki', 'born': 1996}]

Store result in Python variable¶

In [14]:

paths = %cypher MATCH p=shortestPath((:Person {name:"Max von Sydow"})-[*]-(:Person {name:"Jonathan Lipnicki"})) RETURN DISTINCT p

1 rows affected.

In [15]:

len(paths)

Out[15]:

In [16]:

for p in paths:
    pprint(p)

[[{'born': 1929, 'name': 'Max von Sydow'},
  {'roles': ['The Tracker']},
  {'released': 1998,
   'tagline': 'After life there is more. The end is just the beginning.',
   'title': 'What Dreams May Come'},
  {'roles': ['Albert Lewis']},
  {'born': 1968, 'name': 'Cuba Gooding Jr.'},
  {'roles': ['Rod Tidwell']},
  {'released': 2000,
   'tagline': 'The rest of his life begins now.',
   'title': 'Jerry Maguire'},
  {'roles': ['Ray Boyd']},
  {'born': 1996, 'name': 'Jonathan Lipnicki'}]]

Delete all notes and relationships¶

In [17]:

%%cypher

MATCH (n)
DETACH DELETE n

253 relationship deleted.
171 nodes deleted.

Out[17]:
